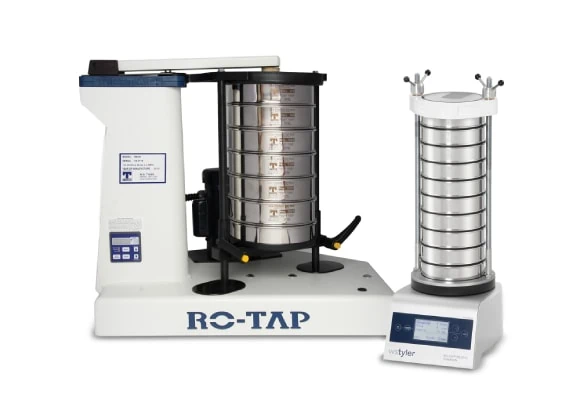

W.S. Tyler Sieve Shaker and Sonic Sifters

Selecting the right lab equipment is critical to yielding accurate and repeatable particle size analysis results. Optimize your test sieve analysis process with tried-and-true technology.

From the industry favorite W.S. Tyler RO-TAP Mechanical Sieve Shakers to cutting-edge sonic sifters, HAVER & BOECKER’s comprehensive particle analysis catalog will allow you to build the perfect lab setting. Engineered with personalization in-mind, these devices place variables like amplitude levels, sieve stack capacity, and test duration in the hands of the user.

Allow our experts to guide you through your selection process so you can elevate the versatility, productivity, and accuracy of your sieve analysis process.

Buy Now

Which W.S. Tyler Sieve Shaker Is Right For You?

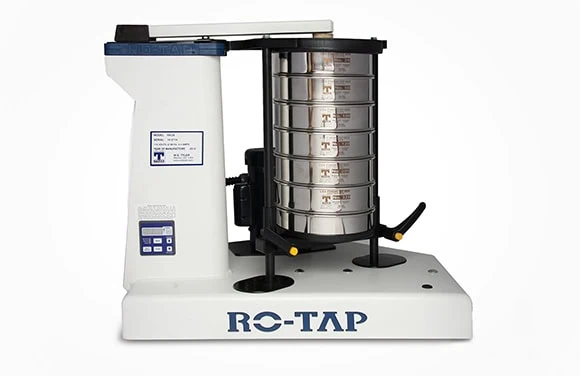

  • RO-TAP RX-29 (8 Inch)

    The gold standard of RO-TAP sieve shakers that is reflected a dozens of industry standrds when using 8-inch test sieves
    Dimensions
    28 x 21 x 25 (71 cm x 54 cm x 64 cm)
    Weight
    180 lbs. (82kg)
    Particle Size Range
    4″ to US #635 mesh (20 um)
    Test Sieve Compatability
    8″ or 200mm Diameter
    Test Sieve Capacity
    Up to 6 full-height sieves or Up to 13 half-height sieves
    Oscillations Per Minute
    278 +/- 10
    Taps Per Minute
    150 +/- 10
    Voltage
    115v or 230v at 50 or 60 Hz
    Learn More RO-TAP RX-29 (8 Inch)

  • RO-TAP RX-30 (12 Inch)

    The gold standard of RO-TAP sieve shakers that is reflected a dozens of industry standrds when using 12-inch test sieves
    Dimensions
    28 x 21 x 25 (71 cm x 54 cm x 64 cm)
    Weight
    180 lbs. (82kg)
    Particle Size Range
    4″ to US #635 mesh (20 um)
    Test Sieve Compatability
    12″ or 300 Diameter
    Oscillations Displacement
    1-1/8″ x 7/16″
    Oscillations Per Minute
    278 +/- 10
    Taps Per Minute
    150 +/- 10
    Test Sieve Stack (Full Height)
    4 Sieves w/ Full Height Pan
    6 Sieves w/ Half Height Pan
    Test Sieve Stack (Half Height)
    8 Sieves w Half Height Pan
    Learn More RO-TAP RX-30 (12 Inch)

  • RO-TAP RX-812 Coarse Sieve Shaker

    Make testing coarse material in both 8 and 12 inch sieve a breeze with our quietest RO-TAP deivce
    Dimensions
    23 x 15 x 13 (59 cm x 38 cm x 33 cm)
    Weight
    55 lbs. (25kg)
    Particle Size Range
    80 mesh and coarser
    Oscillations Displacement
    1 – 1/8 in. x 7/16 in.
    Oscillations Per Minute
    280 +/- (60 Hz) or 231 +/- (50 Hz)
    Taps Per Minute
    Oscillating movement only
    8″ Test Sieve Stack (Full Height)
    6 Sieves w/ Full Height Pan
    8″ Test Sieve Stack (Half Height)
    13 Sieves w/ Half Height Pan
    12″ Test Sieve Stack (Full Height)
    4 Sieves w/ Full Height Pan
    12″ Test Sieve Stack (Half Height)
    6 Sieves w/ Half Height Pan
    Learn More RO-TAP RX-812 Coarse Sieve Shaker

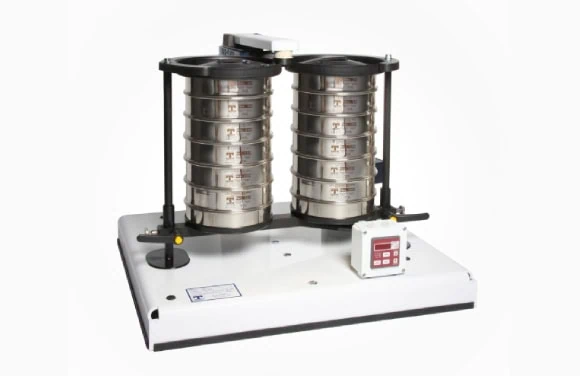

  • RX-94 Duo

    Double your testing capacity using the same tried and true funtionality of the RX-29
    Dimensions
    30 x 27 x 26 (75 cm x 68 cm x 56 cm)
    Weight
    220 lbs. (110kg)
    Particle Size Range
    2″to US #635 mesh (20 um)
    Oscillations Displacement
    1-1/8″x 7/16″
    Oscillations Per Minute
    278 +/- 10
    Taps Per Minute
    150 +/- 10
    Hammer Weight
    5lbs., 6 oz.
    Test Sieve Stack (Full Height)
    6 Sieves w/ Full Height Pan
    Test Sieve Stack (Half Height)
    13 Sieves w/ Half Height Pan
    Learn More RX-94 Duo

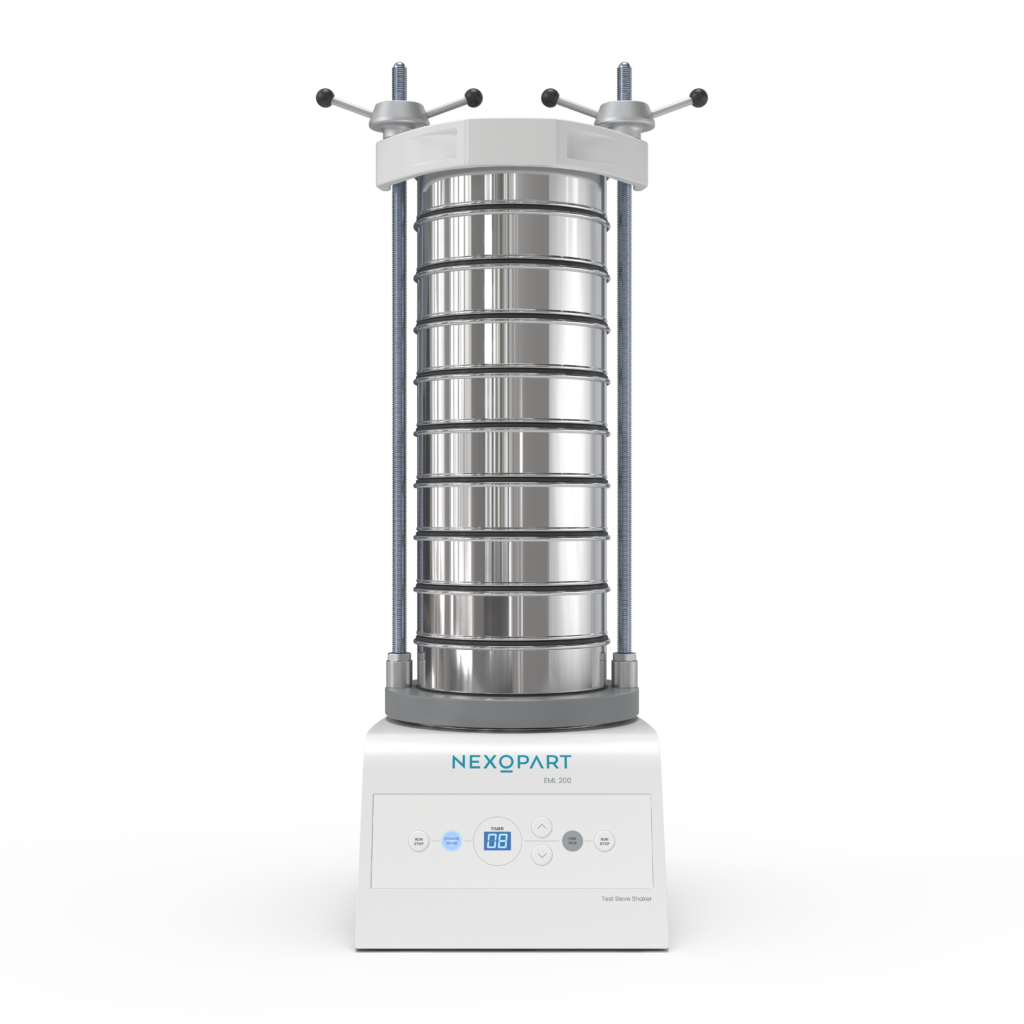

  • RO-TAP E Pure

    Efficent performance in an easy-to-use package
    Amplitude
    Fine and Coasre presets
    Wet sieve analyis compatable
    N/A
    Test Sieve Compatability
    8″ (200 mm)
    Test Sieve Capacity
    9 Full-Height Sieves
    or 15 Half-Height Sieves
    Particel Size Range
    20 um – 125 um
    Program Memory Locations
    N/A
    Operation Intervals
    10 secs (fixed)
    Voltage
    110 v or 230v at 50 or 60 Hz
    Weight
    80 lbs
    Dimmesnions
    15 x 12 x 35
    Learn More RO-TAP E Pure

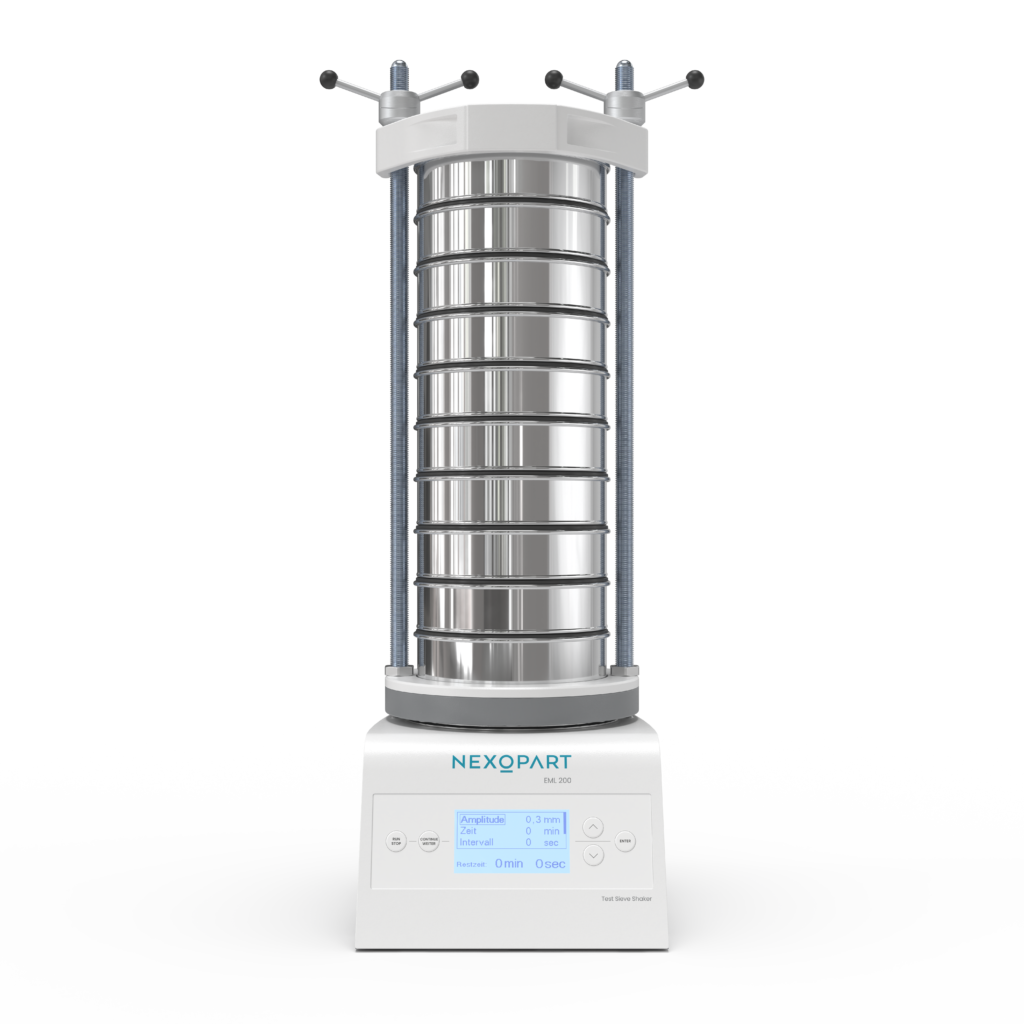

  • RO-TAP E Premium

    Take complete control of your testing process with this top-end RO-TAP sieve shaker
    Amplitude
    Adjustable up to 3 mm
    Wet sieve analyis compatable
    Check mark (yes)
    Test Sieve Compatability
    8″ (200 mm)
    Test Sieve Capacity
    11 Full-Height Sieves
    or 15 Half-Height Sieves
    Particel Size Range
    22 um – 125 um
    Program Memory Locations
    01/-49
    Operation Intervals
    adjustable
    Voltage
    112 v or 230v at 50 or 60 Hz
    Weight
    88 lbs
    Dimmesnions
    16 x 12 x 34
    Learn More RO-TAP E Premium

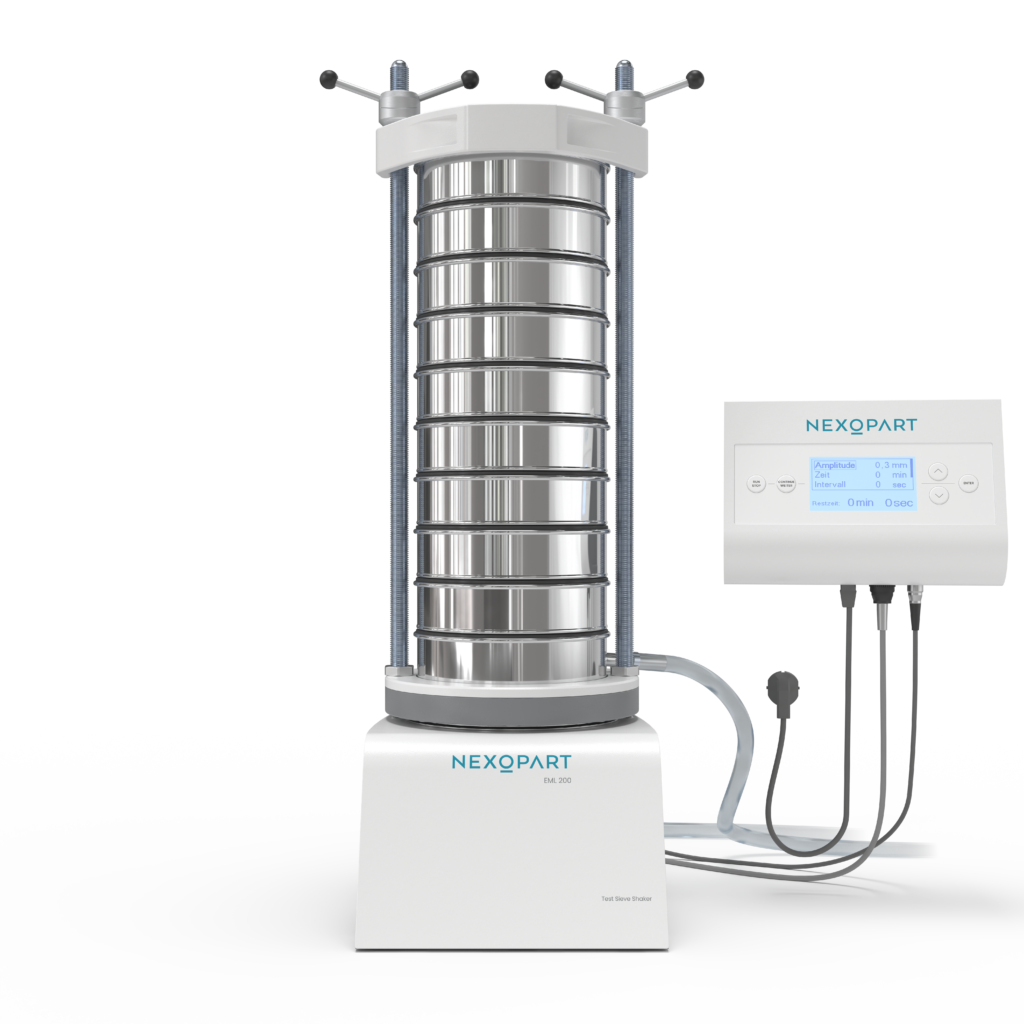

  • RO-TAP E Premium Remote

    Controlled wet sieve analyis is easily with our most versatile and advanced RO-TAP device
    Amplitude
    Fine and Coasre presets
    Wet sieve analyis compatable
    N/A
    Test Sieve Compatability
    8″ (200 mm)
    Test Sieve Capacity
    10 Full-Height Sieves
    or 15 Half-Height Sieves
    Particel Size Range
    21 um – 125 um
    Program Memory Locations
    01/-49
    Operation Intervals
    adjustable
    Voltage
    111 v or 230v at 50 or 60 Hz
    Weight
    80 lbs
    Dimmesnions
    15 x 12 x 34
    Learn More RO-TAP E Premium Remote

  • VariSifter

    This new an improved iteration of the L3P sonic separator grants you complete control over the way your particles are separated
    Test Sieve Compatibility
    3″ acrylic sieves
    Test Sieve Capacity
    6 Acrylic L3-S Series Sieves
    3 Acrylic L3-M Precision Series (35um or coarser)
    1 Acrylic L3-M Precision Series (30um or finer)+ 4 spacers
    Dimensions
    10” w x 12” d x 23” h
    (25 cm x 31 cm x 61 cm)
    Weight
    35 lbs. (16 kg)
    Testing Frequency
    15 Hz to 60 Hz (adjustable)
    Testing Amplitude
    0 to 100% (adjustable)
    Controls
    Touch Panel
    Learn More VariSifter

  • Sonic Sifter

    Testing fine sample material has never been easier then with the original sonic sifter separator
    Test Sieve Compatibility
    3″ acrylic sieves
    Test Sieve Capacity
    7 Acrylic L3-S Series Sieves
    3 Acrylic L3-M Precision Series (35um or coarser)
    1 Acrylic L3-M Precision Series (30um or finer)+ 4 spacers
    Dimensions
    10” w x 12” d x 23” h
    (25 cm x 31 cm x 61 cm)
    Weight
    43 lbs. (20 kg)
    Testing Frequency
    50 Hz or 60 Hz (fixed)
    Testing Amplitude
    0 to aprox. 101dB (adjustable)
    Controls
    Mechanical Knobs
    Learn More Sonic Sifter

Explore Sieve Shaker Accessories

Boost the productivity of your sieving process with a catalog of W.S. Tyler RO-TAP® accessories that inspire innovation.

Learn more ›

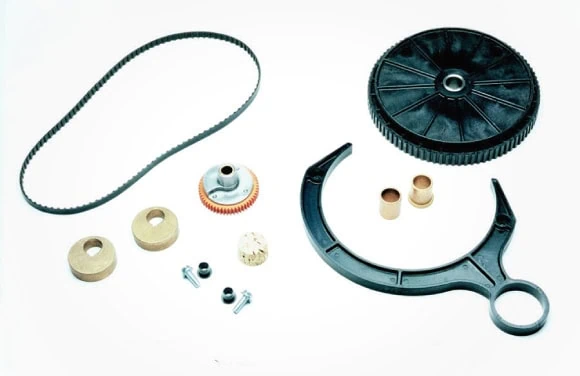

  • RO-TAP Sieve Shaker Maintenance Kit

    To ensure lasting dependable service Sieve Shakers must occasionally be upgraded with parts that are long-wearing, durable and cost effective. Maintenance kits are available for the replacement of parts due to normal wear and tear.

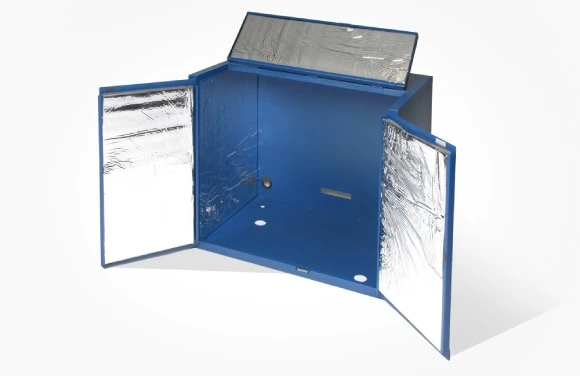

  • RO-TAP Sound Enclosure

    This cabinet/test stand is designed to reduce the operating noise levels of RX-29, RX-30, and RX-812 RO-TAP sieve shakers. Fabricated from 18 gauge steel with a 1” metal face, these sound enclosures are outfitted with acoustic foam, reducing noise levels from 85 to 78 dB.

  • RO-TAP Test Stand

    The Haver & Boecker Wire Weaving RO-TAP Test Stand is designed to provide a secure testing platform for your RO-TAP device. Outfitted with pre-drilled holes, this test stand allows RO-TAP sieve shakers to be bolted down, preventing the device from shifting during operation.

  • Sampling Splitter

    Haver & Boecker Wire Weaving sample splitters are designed with precision in mind. This instrument facilitates accurate and repeatable results by accurately and efficiently splitting bulk samples.

  • Sieve Conversion Kit

    The RO-TAP Sieve Conversion Kit enables RO-TAP users to utilize different test sieve diameters with a single sieve shaker. The kit consists of two inserts, one on top of the test sieve stack and one at the bottom.

    These inserts essentially wedge test sieves with a diameter too small for the sieve shaker housing, allowing the sieve stack to function correctly.

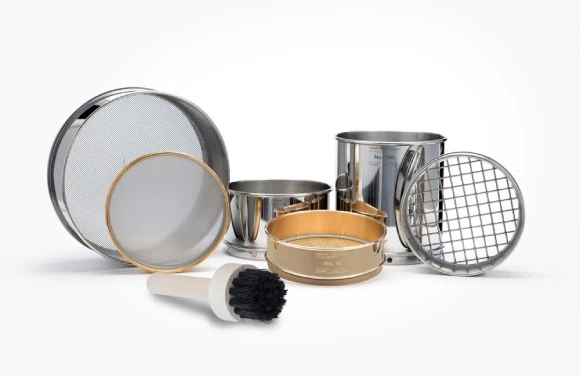

  • Wet Test Sieving Kit

    The Haver & Boecker Wire Weaving Wet Sieve Kit is an assortment of hardware designed to enable wet sieving capabilities using standard RO-TAP devices. This specialized kit includes everything you need to test material suspended in water accurately.

    The included water reservoir allows complete control over the water flow, ensuring accurate and repeatable wet-sieving results. Most importantly, this kit’s components are constructed using high-quality materials, which allow them to withstand heavy exposure to liquid without deteriorating.

w.s. tyler Sieve Shakers Parts

Looking For Particle Analysis Equipment?

From the mining to the pharmaceutical industries, accurate particle size analysis is critical to product quality and efficiency. HAVER & BOECKER strives to manufacturer and supply a wide range of W.S. Tyler test sieve and sieve shaker solutions so you can furnish you lab with equipment that delivers.

Regardless if you are following ASTM or ISO standards, these cutting-edge solutions are engineered to help you achieve controlled and uniform results.
