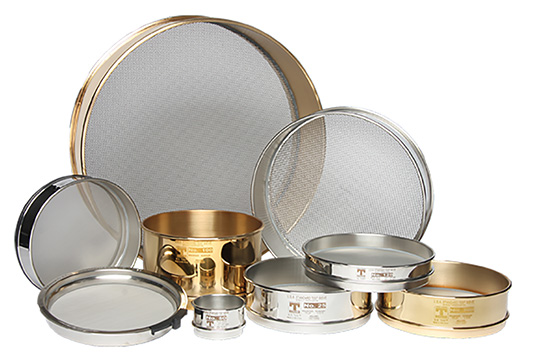

W.S. Tyler Test Sieves

W.S. Tyler developed the basis for the first test sieve standard over 100 years ago. Since then, a vast range of test sieve specifications have been developed, allowing you to generate reliable particle size distribution curves.

From food processing to pharmaceutical production, HAVER & BOECKER’s comprehensive catalog of W.S. Tyler Test Sieves can accommodate most industry standards with accurate and repeatable results.

All in which are fabricated using quality materials, including woven wire mesh woven to ASTM-E11/ISO 3001 standards.

Explore our W.S. Tyler Test Sieve offerings below to create a sieving process you can proudly stand behind.

Buy Now

Which W.S. Tyler Test Sieve Is Right For You?

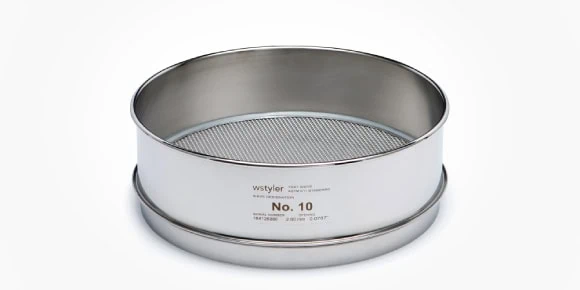

  • Standard Sieve

    The gold standard of test sieve precision, these standard sieves will accommodate most sieve shakers
    Diameter
    8″ 12″ 3″ 200mm 300mm
    Frame Height
    8″ [1″ to 2″ depths]
    12″ [1-5/8″, 2″, or 3-1/4″ depths]
    3″ [5/8″ to 1-1/4″ depths]
    200mm [1″ to 2″ depths]
    300mm [1-3/8″ to 2-3/8″ depths]
    Particle Size Range
    8″ [5″ to No.635]
    12″ [5″ to No.500]
    3″ [No.3-1/2 to No.635]
    200mm [5″ to No.635]
    300mm [5″ to No.635]
    Frame Alloy
    Stainless Steel [8″ 12″ 3″ 200mm 300mm]
    Brass [8″12″ 3″ 200mm]
    Mesh Alloy
    Stainless Steel [8″ 12″ 3″ 200mm 300mm]
    Brass [8″12″]
    Standard Designation
    ASTM E11/ISO 3310-1
    Learn More Standard Sieve

  • Non-Standard Sieve

    Specialzed sieves deisgned to deliver ASTM and ISO precision to unique testing processes
    Diameter
    6″ 10″ 18″
    Frame Height
    2″, 4″, 5″
    Particle Size Range
    5″ to 20um
    Frame Alloy
    Stainless Steel
    Mesh Alloy
    Stainless Steel
    Standard Designation
    ASTM E11/ISO 3310-1
    Learn More Non-Standard Sieve

  • Wet Wash Sieves

    Fabricated with a taller frame, these sieves will optimize your wet sieve analysis process
    Diameter
    3″ to 12″
    Frame Height
    4″ to 9″
    Particle Size Range
    No. 4 to No. 325
    Frame Alloy
    Brass or Stainless Steel
    Mesh Alloy
    Brass or Stainless Steel
    Standard Designation
    ASTM E11/ISO 3310-1
    Learn More Wet Wash Sieves

  • Air Jet Sieves

    Specifically designed to fit the e200 LS Air Jet Sieve, these sieves will make testing fines a breeze
    Diameter
    200 mm
    Frame Height
    1 3/4″
    Particle Size Range
    No.8 to No. 635
    Frame Alloy
    Stainless Steel
    Mesh Alloy
    Stainless Steel
    Standard Designation
    ASTM E11/ISO 3310-1
    Learn More Air Jet Sieves

  • 3″ sonic Sieves

    Fabricated out of clear acrylic, sonic sieves allow you to visually analyze how well your materials passes through the sieve stack
    Diameter
    3″
    Frame Height
    5/8″ or 1 1/4″
    Particle Size Range
    3.5″ to 3um
    Frame Alloy
    Acrylic
    Mesh Alloy
    Stainless Steel or Electroformed Nickel
    Standard Designation
    ASTM E11 or ASTM E161
    Learn More 3″ sonic Sieves

Test Sieves Accessories

Ensure undeniable precision with test sieve accessories designed to promote accurate and repeatable results.

Learn more ›

  • Brass Brush

    Cleaning brushes made specifically to gently yet effectively clean test sieves. Available in brass for coarser mesh sieves.

  • Ultrasonic Test Sieve Cleaner

    An ultrasonic test sieve cleaner designed to safely and effectively remove stubborn debris from test sieves. Compact and portable, it requires minimal maintenance and operates on a 110-volt, 60-cycle current.

  • Nylon Brush

    Cleaning brushes made specifically to gently yet effectively clean your test sives. Available in nylon for finer mesh sieves.

  • Test Sieve Cover Product

    Test sieve covers serve as a protective lid that keeps sample material within the sieve stack. They are available in 3″, 6″, 8″, 10″, 12″, 200mm, and 300mm diameters to ensure a snug fit.

  • Test Sieve Pan Product

    Test sieve pans work to collect and retain fines that pass through the entire sieve stack. Fabricated with an easy-to-handle design, particles are distributed evenly within the pan, making for a seamless analysis process.

Essential Product Information For You

view all

Quality Fabrication For Reliable Results

The accuracy of your test sieves is only as good as the fabrication process used to build them. HAVER & BOECKER’s ISO-certified process ensures your W.S. Tyler Test Sieves measure accurately and consistently.

Learn more

Alloy Variety For Seamless Integration

The alloy of your W.S. Tyler Test Sieves determines how well they perform. Select the right material to guarantee the desired durability, chemical resistance, and accuracy.

Learn more

Accommodate The Accuracy Your
Process Requires

The level of accuracy required varies from lab to lab. Explore the capabilities of matched, master, and gold W.S. Tyler Test Sieves to best accommodate your
accuracy needs.

Learn more
